WQA Series Multistage Submersible Pumps

◎Performance Range:
Max. Flow: 360m 3 / h
Max. Head: 212m

◎Application condition:
Maximum liquid temperature +40℃
pH level from 6.5-8.5
Maximum sand content is 0.1%.Passage of suspended solids up to 0.2mm
Power frequency is 50Hz.Nominal voltage is 380VAC for three phase with the range from -10% to 10%
Immersion depth from 0.5m-5m

◎Certificate：

◎Application Fields:
WQA series pumps with high pressure are widely applied in many fields, such as agricultural irrigation, sprinkler irrigation, garden irrigation, water supply for wells or reservoirs, aquaculture, etc.

◎Features:
Wear-resistant whole cast iron parts design.
Compact structure, easy to use.
High quality double sides mechanical sealing to be reliable operating.

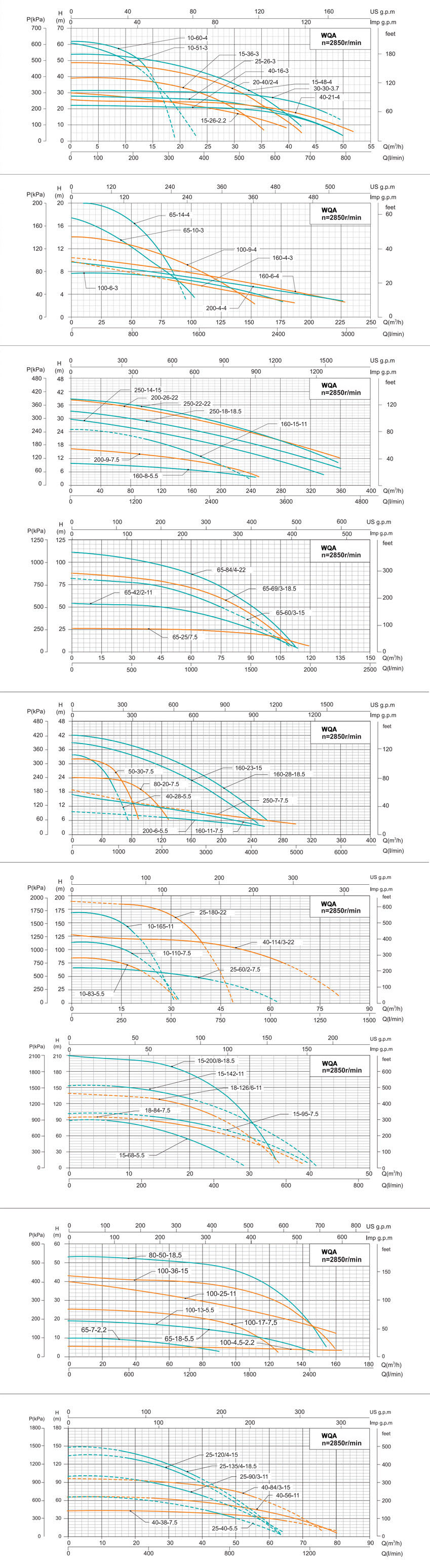

◎Performance Curve
